150-164 MHz, 6 dBd, Omni, DIN(F) (DS1F06F36U-D)

Price:
Login Required
Part No.:
DS1F06F36U-D
Brand:
Weight:
83.00 LBS
Availability:
Ships in 6 Weeks


Product Description

General Specifications
Description VHF Omni Fiberglass 6 dBd Antenna
Antenna Type Omni Directional
General Frequency 150-164 MHz

Electrical Specifications
Bandwidth (MHz) 15
Power (Watts) 500
Frequency Band (MHz) 150-164
Gain (dBd) 6

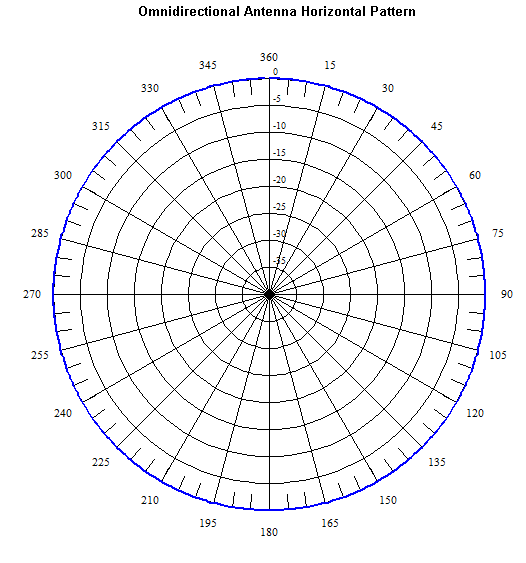

Horizontal Beamwidth (Degrees) 360
Vertical Beamwidth (Degrees) 16
Beam Tilt (Degrees) 0
VSWR 1.5:1
Impedance (Ohms) 50
PIM Designed Yes

Dimensions
Length 21.9 ft (6.7 m)
Radome O.D. 3 in (7.62 cm)
Mast O.D. 2.5 in (6.4 cm)
Net Weight 60 lb (27.2 kg)

Mechanical Specifications
Construction Brass/Copper
Input Connector DIN(F)
Output Connector N/A
Wind Speed (Max.) 75 mph (120.7 kph)
Temperature Range -30 to +60 C
Mounting Hardware DSH3V3N
Flat Plate Area 4.4 ft2 (0.4 m2)


dbSpectra products are proudly designed & constructed in the USA.
