400-512 MHz, 6 dBd, Directional, DIN(F) (DS4E06P18U-D)
Price:
Login Required
Part No.:
DS4E06P18U-D
Brand:
Weight:
25.00 LBS
Availability:
Ships in 12 Weeks
Shipping:
Calculated at checkout
Product Description
Product Downloads
| General Specifications |
| Description | UHF Directional Beam 6 dBd Panel Antenna |
| Antenna Type | Directional |
| General Frequency | 400-512 MHz |
| Electrical Specifications |
| Bandwidth (MHz) | 112 |
| Power (Watts) | 500 |
| Frequency Band (MHz) | 400-512 |
| Gain (dBd) | 6 |
| Horizontal Beamwidth (Degrees) | 180 |

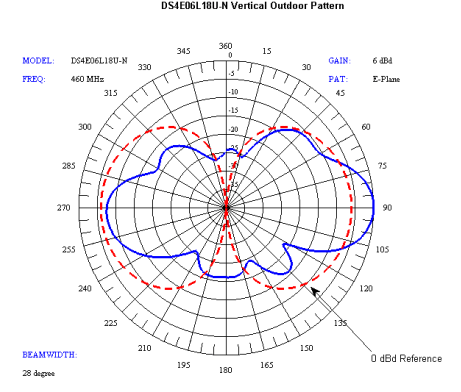

| Vertical Beamwidth (Degrees) | 27 |
| Beam Tilt (Degrees) | 0 |
| VSWR | 1.5:1 |
| Impedance (Ohms) | 50 |
| PIM Designed | Yes |
| Dimensions |
| Length | 48 in (1219.2 mm) |
| Width | 6 in (152.4 mm) |
| Height | 48 in (1219.2 mm) |
| Net Weight | 15 lb (6.8 kg) |
| Mechanical Specifications |
| Construction | Aluminum/Brass |
| Input Connector | DIN(F) |
| Output Connector | N/A |
| Wind Speed (Max.) | TBD |
| Temperature Range | -30 to +60 C |
| Mounting Hardware | TBD |
| Flat Plate Area | 2 ft2 (0.12 m2) |
dbSpectra products are proudly designed & constructed in the USA.
