806-869 MHz, SHORT MAGNUM™ Single Omni Antenna, Low-PIM / Hi-PIP, 10 dBd, 4.3-10 (DS8M10PS3U-M)

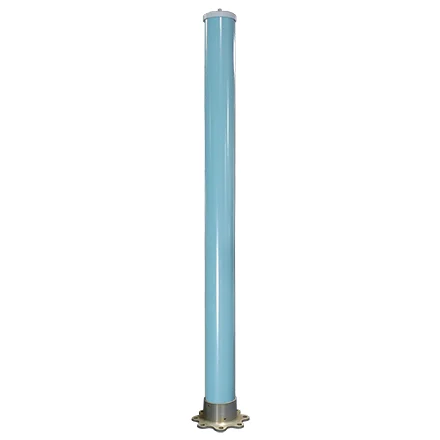

dbSpectra DS8M10PS3U-M SHORT MAGNUM™ Single Omni Antenna, 4.3-10 Connector

• dbSpectra SHORT MAGNUM antennas are length- and weight-reduced to meet specific replacement requirements, or used when length and weight parameters are most critical.
• Omnidirectional horizontal coverage in a heavy-duty package maximizes performance and practically eliminates tip deflection.
• PIM Rated Design – better than -150 dBc.
• Tested to stringent Peak Instantaneous Power (PIP) levels of 25 KW using dbSpectra’s multi-channel P25 PIP test bed. High PIP level is demanded by today’s digital systems.
• True Corporate Feed Array – provides for excellent gain and pattern consistency across a wider frequency range.
• Excellent Lightning Protection – brass tip feeds heavy internal conductor DC ground.

PDF: Spec Sheet
