VHF Metal Dipole Antenna, Elliptical Pattern, 1-Bay, 2-Dipole, Low-PIM / Hi-PIP, 3.1 dBd

SKU: DS1B03PMHU-M, DS1B03PMHU-D, DS1B03PMHU-NCategory: Metal Dipole

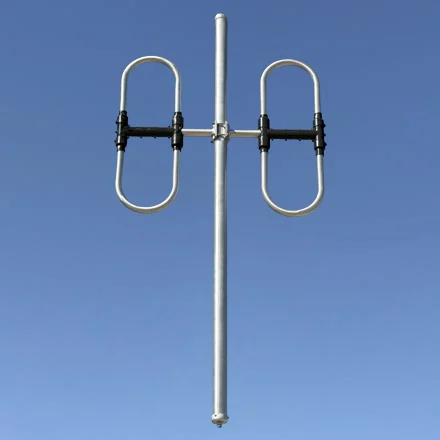

dbSpectra DS1B03PMHU Series VHF Metal Dipole Antenna

Robust VHF metal dipole antenna with elliptical pattern, 3.1 dBd gain, Low-PIM / High-PIP Rated, 1-bay / 2-dipole design with mast.

Available with 4.3-10, 7/16 DIN or Type-N connectors.

PDF: Spec Sheet

Electrical Downtilt0
Frequency BandVHF
Gain3.0 to 4.9 dBd
Low-PIM/Hi-PIP CertifiedYes
Number of Ports1
Pattern TypeElliptical
RF Connector4.3-10, 7-16 DIN, Type N(F)
